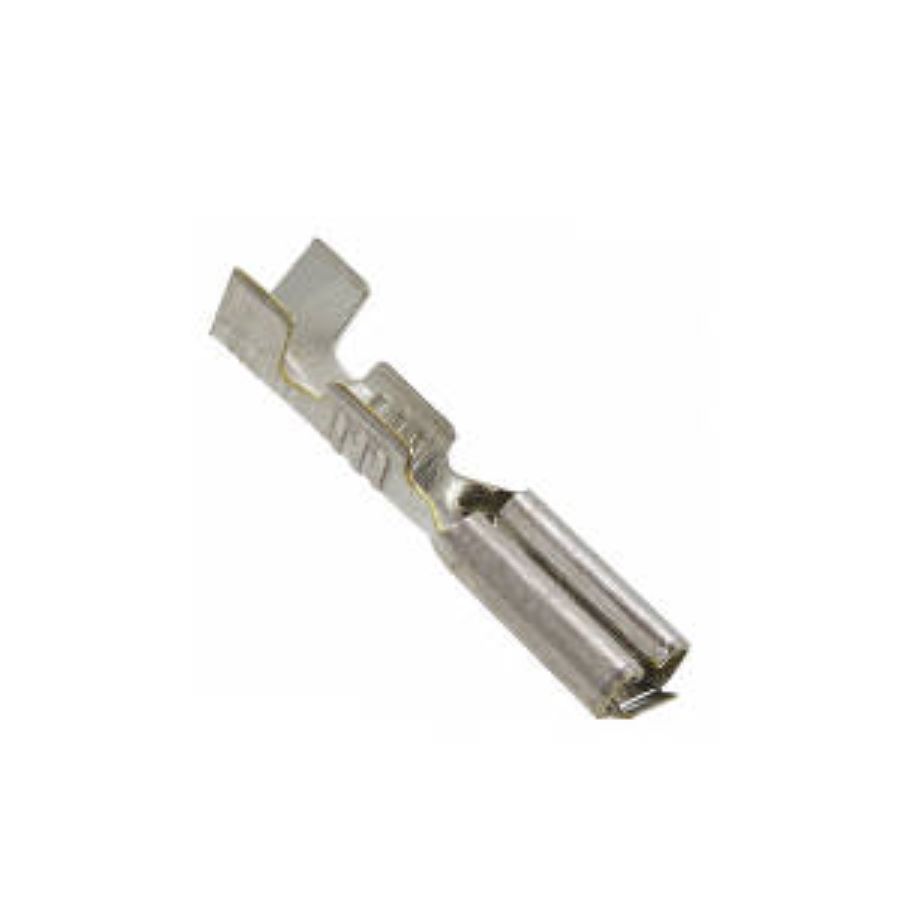

140717-2
Manufacturer:
TE Connectivity
Mfr.Part #:
140717-2
Datasheet:
Description:
Terminals Free Hanging 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 16.1 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 3.76 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Wire/Cable Diameter | 2.5 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 2.5 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 2.794 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 2.8 mm x 0.51 mm |
Stock: 24720
Distributors
pcbx
pcbxUnit Price$0.39858
Ext.Price$0.39858
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39858 | $0.39858 |
| 10 | $0.19929 | $1.99290 |
| 50 | $0.15330 | $7.66500 |
| 100 | $0.11792 | $11.79200 |
| 500 | $0.09071 | $45.35500 |
| 1000 | $0.06978 | $69.78000 |
| 3000 | $0.05368 | $161.04000 |
| 5000 | $0.04129 | $206.45000 |
| 10000 | $0.04129 | $412.90000 |
| 30000 | $0.03377 | $1013.10000 |
